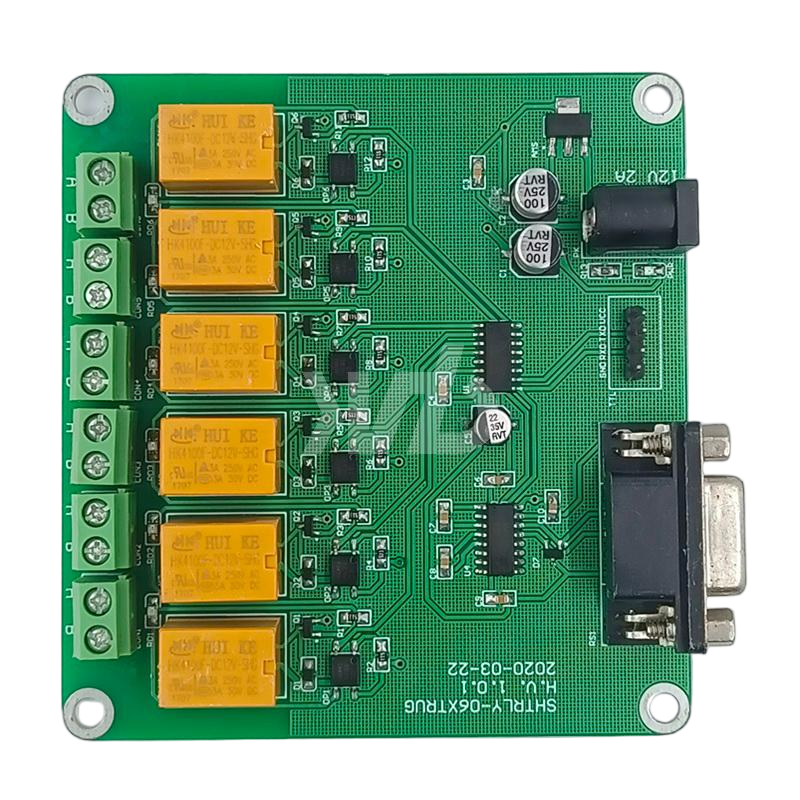

Universal Small Output Six Channel Relay Controller SHTRLY-06XTRUG

Universal product. Onboard 6-channel HK4100F-DC12V-SHG pure copper electric shock relay. The fixed communication protocol can be used to operate the external 6-channel relay on/off action. There are two built-in protocols, one is a user-defined protocol and the other is a standard MODBUS protocol. Relays support multiple control modes, including single action mode, which can only be activated or deactivated. Activation and deactivation are independent commands; Jogging mode, after being engaged, disconnect after a set time; Delay mode, after sending the delay suction command, it will only be sucked in after the set time has passed. Using a 12V 2A power supply, all channels simultaneously draw in a total current of around 600MA. Only supports RS232 serial port operation.
